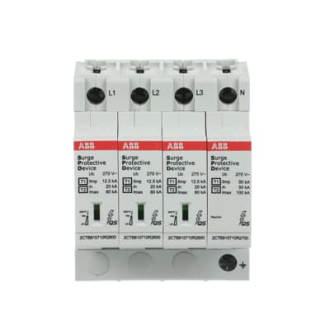

2CTB815710R1900 OVR T1-T2 3N 12.5-275s P QS ABB
2CTB815710R1900 OVR T1-T2 3N 12.5-275s P QS ABB
Satıcı Firma Yeni Yıldırım Elektrik
ABB EcoSolutions
Environmental Product Declaration – EPD:
Technical
Type of Low Voltage Distribution System:
TT
TN-S
Şuna Uygun:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
230 / 400 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 275 V
(L-L) 440 V
(L-N) 275 V
(N-PE) 255 V
Temporary Overvoltage Test Value (UT):
(L-N) 337 V
(N-PE) 1200 V
Discharge Current:
Nominal 20 kA
Maximum 80 kA
Total 100 kA
Impulse Current:
I (imp, 10 / 350 µs) 12.5 kA
I (total, 10 / 350 µs) 50 kA
Lightning Impulse Current:
12.5 kA
Short Circuit Withstand Icc:
100 kA
Follow Current Extinction Capacity If (I fi):
(L-N) – kA
(N-PE) 0.1 kA
Kısa Devre Koruyucu Cihazlar:
Curve B Breakers ≤ 125 A
Curve C Breakers ≤ 125 A
gL Type Fuses ≤ 160 A
gG Type Fuses ≤ 160 A
Arrester Class:
I
II
Number of Protected Poles:
4
Kutup Sayısı:
4P
Position of Neutral Terminals:
Right
Version:
Plug-in
Ürün Türü:
QS
Options Provided:
Industry, commercial building
Preventive Maintenance Feature:
Yes
Status Indicator:
Yes
Sigorta Boyutu:
4 modular spacing
Electrical
Voltage Protection Level ( Up):
(L-N) 1.4 kV
(N-PE) 1.4 kV
(L-PE) 1.5 kV
Power Loss:
Total 63 mW
Material Compliance
RoHS Bilgileri:
RoHS Durumu:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Tarihi:
20230707
REACH Declaration:
REACH Information:
False – does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
AEEE Kategorisi:
5. Small Equipment (No External Dimension More Than 50 cm)
AEEE B2C / B2B:
Business To Business
Environmental
Koruma Derecesi:
IP20
İzin Verilen Maksimum Çalışma Rakımı:
Without Derating 5000
Dimensions
Width in Number of Modular Spacings:
4
Ürün Net Genişliği:
71.2 mm
Ürün Net Yüksekliği:
88 mm
Ürün Net Derinlik / Uzunluk:
76.7 mm
Ürün Net Ağırlığı:
0.6 kg
Ordering
Paket Seviye 1 Birimler:
box 1 piece
Paket Seviye 1 Brüt Ağırlık:
1.000 kg
E-Number (Finland):
3212135
E-Number (Norway):
1623954
Certificates and Declarations
CQC Certificate:
Declaration:
Uygunluk Beyanı – CE:
Installation
Talimatlar ve Kılavuzlar:
Montaj Türü:
DIN-Rail
Popular Downloads
Veri Sayfası, Teknik Bilgi:
Mechanical Drawings:
External Classifications and Standards
ETIM 9:
EC001457 – Combined arrester for power supply systems
ETIM 10:
EC001457 – Combined arrester for power supply systems
UNSPSC:
39121610
eSınıf:
V11.0 : 27130808
Nesne Sınıflandırma Kodu:
141BCC
Standartlar:
IEC 61643-11 / EN 61643-11
